Part Numbers and Sizes
RADIUS FITTING
| Description |
Part Number |
| -6 X 9/16-18 (6) |
595100 |
UNION – 815
| Description |
Part Number |
| -3 |
581503 |
| -4 |
581504 |
| -6 |
581506 |
| -8 |
581508 |
| -10 |
581510 |

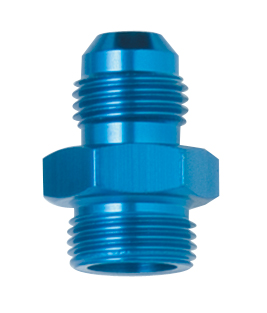

STRAIGHT ADAPTERS – 816
| Description |
Part Number |
| -3 X 1/8 NPT |
581603 |
| -4 X 1/8 NPT |
581604 |
| -4 X 1/4 NPT |
581605 |
| -6 X 1/8 NPT |
581662 |
| -6 X 1/4 NPT |
581606 |
| -6 X 3/8 NPT |
581666 |
| -6 X 1/2 NPT |
581668 |
| -8 X 1/4 NPT |
581607 |
| -8 X 3/8 NPT |
581608 |
| -8 X 1/2 NPT |
581688 |
| -10 X 3/4 NPT |
581609 |
| -10 X 1/2 NPT |
581610 |
| -10 X 3/8 NPT |
581611 |
| -12 X 3/4 NPT |
581612 |
| -12 X 1/2 NPT |
581613 |
| -16 X 3/4 NPT |
581615 |
| -16 X 1 NPT |
581616 |

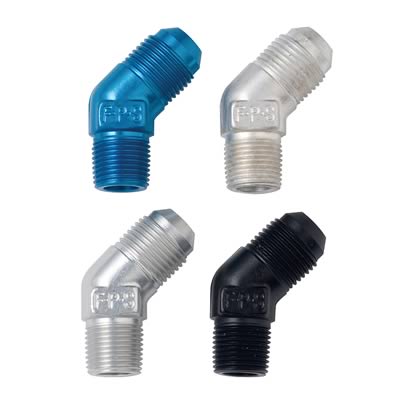

45° ADAPTERS – 823
| Description |
Part Number |
| -3 X 1/8 NPT |
581603 |
| -4 X 1/8 NPT |
581604 |
| -4 X 1/4 NPT |
581605 |
| -6 X 1/8 NPT |
581662 |
| -6 X 1/4 NPT |
581606 |
| -6 X 3/8 NPT |
581666 |
| -6 X 1/2 NPT |
581668 |
| -8 X 1/4 NPT |
581607 |
| -8 X 3/8 NPT |
581608 |
| -8 X 1/2 NPT |
581688 |
| -10 X 3/4 NPT |
581609 |
| -10 X 1/2 NPT |
581610 |
| -10 X 3/8 NPT |
581611 |
| -12 X 3/4 NPT |
581612 |
| -12 X 1/2 NPT |
581613 |
| -16 X 3/4 NPT |
581615 |
| -16 X 1 NPT |
581616 |
